Live Demos for World's Lowest Power, Longest Running, Outdoor Covert Police Law Enforcement Utility Pole Cameras Systems

If you are unable to access our demos, your LAN's router is probably blocking access to our Cloud-based Portal, through which our video flows and which provides our user interface. Please access our demos via a cellular Internet connection or a 'guest' WiFi connection, or ask your IT people to unblock access to our Portal.

Our viewing software runs natively in Chrome and some other browsers. It does not require installation of any software or plugins when you use the Chrome browser on PC's, MAC's and most mobile devices.


BSSI-7 live demo views RT25, a two-lane highway in Monroe, CT

The BSSI-7 Model 2 demo system, The Ghost, has a 35 to 85 mm motorized zoom lens with autofocus, motorized PTZ, a motorized IR-cut filter, a digitally controlled iris, and a wired Internet connection. The entrance to the nursery across the street, on RT25, is about 350 feet from the Covert Camera System, and is being viewed from the roof of a 2-story building near the top of a small hill.

For the most functionality, use the Chrome browser on a PC. The low data rate, monitoring stream, has 960x540 resolution @ 10 fps in daylight, 3 fps in low light, and 512 Kbps to 768 Kbps in daylight. It is available both live and recorded, and is used to make the Rapid Review / Integrated Time-lapse video. The much sharper, evidentiary stream, has 1920x1080 resolution @ 10 fps in daylight, 3 fps in low light, and 2 - 3 Mbps in daylight. It has much less compression and thus a much higher data rate than the monitoring stream, especially with motion, and is available recorded.

Ultra Low Power, forward-pivot, Outdoor Covert micro-PTZ Pole-Camera System Model 2 with continuous internal dual-stream video recording and Rapid Review™.
Click image for larger image. Note that covert camera system is seen from the rear.

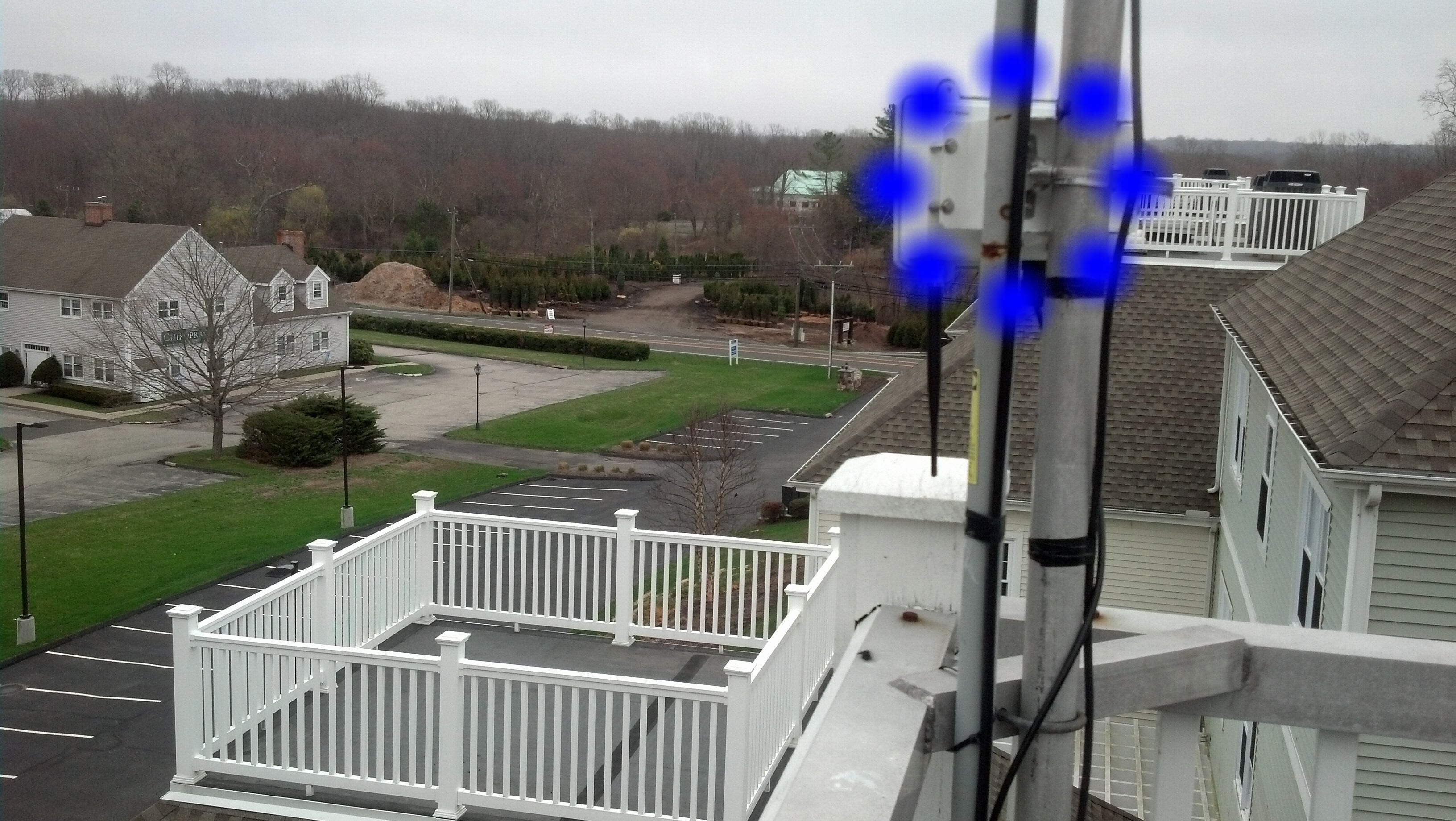

View of RT25 from roof where the demo system is located. The outdoor covert pole camera system is the small white unit on a metal pole, shown in blue dots in the photo. When a cell modem is used, two cell antennas would be on top of the unit.

BSSI-8 live demo views a residential street in Peabody, MA

The BSSI-8 demo system is indoors and views the outdoors. It has a 5 mm fixed focus lens (no mechanical PTZ), fixed IR-cut filter, fixed iris, and wired Internet connection.

For the most functionality, use the Chrome browser on a PC. The low data rate, monitoring stream, has 960x540 resolution @ 10 fps, and 512 Kbps to 768 Kbps in daylight. It is available both live and recorded, and is used to make the Rapid Review / Integrated Time-lapse video. The much sharper, evidentiary stream, has 1920x1080 resolution @ 10 fps, and 2 - 3 Mbps in daylight. It has much less compression and thus a much higher data rate than the monitoring stream, especially with motion, and is available recorded.

ultra low bandwidth, fixed indoor camera with continuous dual-stream internal video recording and Rapid Review™.
Click images below for larger images.
Monitoring video stream, 960x540 highly compressed, low data rateEvidentiary video stream, 1920x1080 lightly compressed, higher data rate
